Key Features:

1. Enhanced Durability:

   • Equipped with an upgraded non-strippable, patented gear drive mechanism.
   • Can withstand forceful adjustments without damage, ensuring long-term reliability.

2. Adjustable Arc:

   • Arc settings adjustable from 50° to 360° for part-circle and full-circle coverage.
   • Easy adjustments with a Hunter adjustment tool or flathead screwdriver.

3. Wide Coverage:

   • Covers a radius of 6.4 m to 14 m (21 ft to 47 ft), suitable for medium to large landscapes.

4. Nozzle Options:

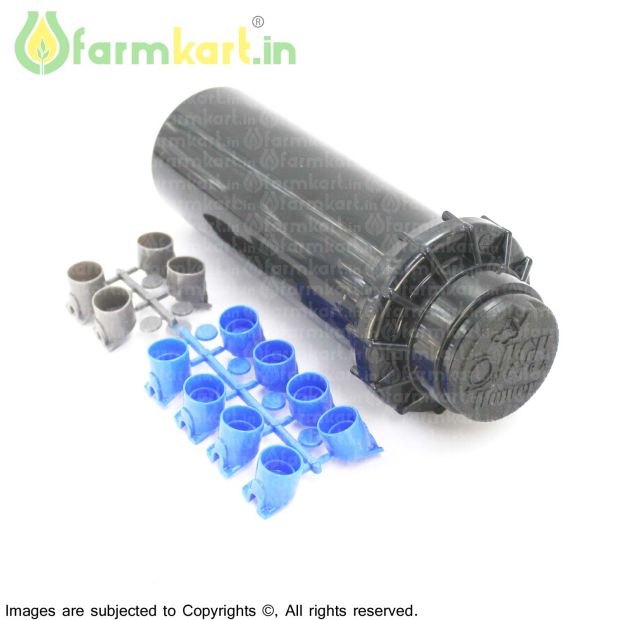

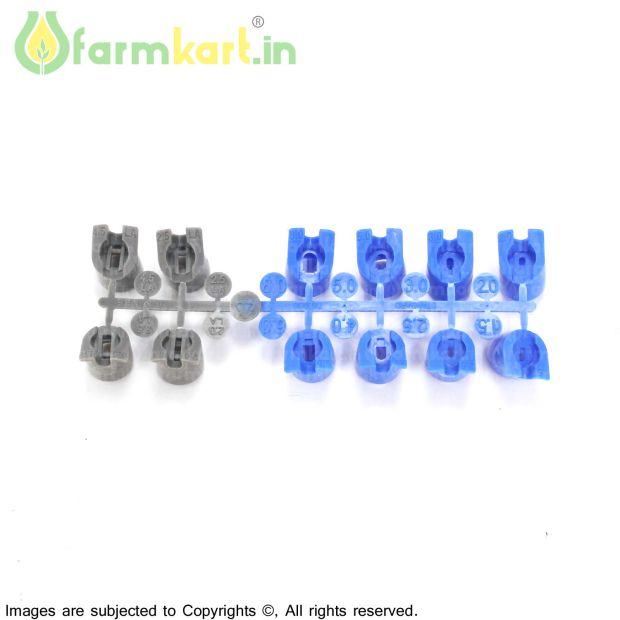

   • Comes with a pre-installed nozzle and a rack of 8 standard and 4 low-angle nozzles.
   • Allows customization of spray patterns and flow rates for specific irrigation requirements.

5. Efficient Water Distribution:

   • Features Hunter’s patented Rain Curtain™ Technology for even water distribution from the sprinkler head to the edges of the radius.
   • Reduces dry spots and ensures optimal water delivery.

6. Pop-Up Height:

   • Offers a 4-inch (10 cm) pop-up height, ideal for clearing taller grasses and ground cover.

7. Pressure Range:

   • Operates effectively within a pressure range of 25–70 PSI (1.7–4.8 bar).

8. Debris Resistance:

   • A rubber cover protects the sprinkler internals from dirt and debris, extending its lifespan.

9. Ease of Installation and Maintenance:

   • User-friendly design for quick installation and nozzle replacement.
   • Internal components are easily accessible for routine maintenance.

10. Versatility:

    • Fully compatible with existing PGP installations for seamless upgrades.
    • Can be used in conjunction with other Hunter rotors for matched precipitation rates.

Specifications:

Advantages:

1. Water Efficiency:

   • The Rain Curtain™ technology ensures even water distribution, minimizing water wastage and dry patches.

2. Durability:

   • Built with robust materials to withstand harsh environmental conditions and vandalism.

3. Flexibility:

   • Adjustable arc and nozzle options allow customization for various landscape layouts.

4. Cost-Effective:

   • Low maintenance and reduced water wastage help save on operational costs.

5. Versatile Applications:

   • Suitable for residential lawns, commercial landscapes, parks, sports fields, and other medium-to-large areas.

Applications:

• Residential: Ideal for lawns, gardens, and flower beds.
• Commercial: Suitable for office parks, commercial landscapes, and public spaces.
• Sports Fields: Delivers consistent watering for turf and grass used in sports activities.
• Parks and Open Spaces: Effective for large, open landscapes with varying irrigation needs.

Performance Chart:

Explanation of Units:

1. Pressure (Bar):

   • The water pressure at the sprinkler nozzle, with 1 bar equal to 14.5 PSI.

2. Radius (Meters):

   • The distance water sprays from the sprinkler head, measured in meters.

3. Flow Rate (LPH):

   • The volume of water delivered by the sprinkler, measured in liters per hour (1 GPM ≈ 3.785 L/min ≈ 227.1 LPH).

4. Precipitation Rate (cm/hour):

   • The depth of water applied per hour over the irrigated area. Values are provided for both 180° (half-circle) and 360° (full-circle) arc settings.
