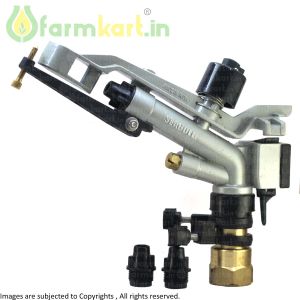

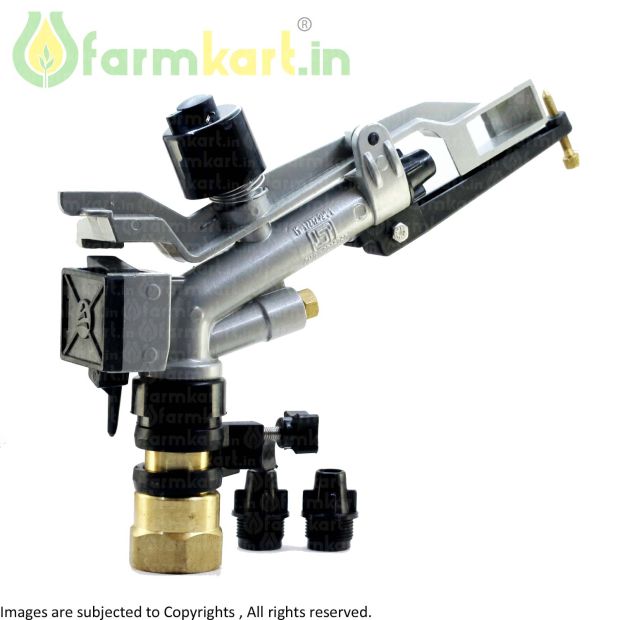

1 inch mini Raingun Seagull HT-30 by Automat in Sprinkler Nozzles

1 inch mini Raingun Seagull HT-30 by Automat

1" Mini Raingun Sprinkler that is highly energy-efficient and specially designed to work even at a low water pressure of 1kg/cm2.

( No Reviews )

₹ 1,850 ^₹3,590

Order From Whatsapp

Seller farmkart

Tags 1-inch mini Raingun Seagull HT-30 Raingun Automat HT-30 Raingun 1-inch Raingun sprinkler mini Raingun HT-30 Seagull HT-30 irrigation sprinkler Automat Seagull Raingun 1-inch Seagull Raingun mini Raingun by Automat HT-30 sprinkler system Seagull Raingun performance HT-30 Raingun flow rate 1-inch irrigation gun Automat HT-30 sprinkler head Seagull Raingun adjustable arc 1-inch agricultural Raingun HT-30 sprinkler nozzle Seagull HT-30 irrigation solution Automat HT-30 mini Raingun Seagull HT-30 sprinkler coverage HT-30 water-saving Raingun 1-inch Seagull sprinkler HT-30 Raingun for farms Automat Seagull HT-30 performance HT-30 Raingun for lawns Seagull HT-30 for large fields Seagull HT-30 sprinkler radius Seagull Raingun for parks HT-30 Raingun for agriculture mini Raingun HT-30 for gardens HT-30 sprinkler system by Automat Seagull HT-30 nozzle options HT-30 irrigation sprinkler gun Seagull Raingun flow settings 1-inch mini Raingun for fields Seagull HT-30 sprinkler efficiency Automat HT-30 robust Raingun HT-30 sprinkler installation Seagull HT-30 water-efficient sprinkler Automat Raingun HT-30 specs Seagull HT-30 durable Raingun HT-30 sprinkler for landscapes Seagull HT-30 low-maintenance Raingun HT-30 irrigation gun by Automat Seagull HT-30 customizable settings HT-30 Raingun precipitation rate Seagull Raingun arc adjustment HT-30 sprinkler parts.

No Cancellation

No Returnable

Product Details :

Colour :	Grey
Connection End Type :	Female Threaded
Discharge in LPH :	above 2000
Distance Coverage Radius (Feet) :	30-50
Operating Pressure (Kg per square cm ) :	2-3
Quality Standards :	ISI
Size in Inches :	1 inch
Sprinkler Categories :	Sprinkler Nozzles
Made In :	India
Brand :	Automat

Features:
• Available in 1" BSP/NPT Female threaded
• Pressure die casted Body and arm.
• Heavy duty brass nut, tube & Diffusor Screw.
• Stainless Steel Pivot Pin, Lock Pin, Springs, Nut and bolt.
• Plastic parts made of engineering plastic for durablity.
• Available both Full Circle & Part -circle design.
• Jet breaker screw to change the water jet from heavy droplets to fine spray.
• Operating Pressure Range 1.0 - 4.0 kg/cm2 or 15 - 60Psi
• Recommended Pressure 2 kg/cm2
• Recommended spacing 18m for higher distribution uniformity.
• Trajectory Angle: 28

Applications :

Suitable for Overhead irrigation for bigger crops like sugarcane, oats, maize, fodder and horticulture.
It can also be applied to deep irrigations of intensive cultivation such as vegetables.
Designed for both full field and irrigation of field edges.

Performance Table
Nozzle	Pressure		Coverage Diameter		Discharge Rate
mm²	kg/cm²	Psi	mtr.	ft.	LPM	GPM
6*3.5	1.0	14.2	24	79	32	8.41
	2.0	28.4	30	98	44	11.7
	3.0	42.7	34	112	55	14.5
	4.0	56.9	36	118	63	16.5

8*3.5	1.0	14.2	26	85	45	11.9
	2.0	28.4	33	108	63	16.7
	3.0	42.7	36	118	78	20.7
	4.0	56.9	38	125	91	23.9

10*3.5	1.0	14.2	28	92	65	17.2
	2.0	28.4	34	112	94	24.7
	3.0	42.7	39	128	116	30.5
	4.0	56.9	42	138	134	35.4
